OFL refrigerator freezer roller shelf parts selection

1. Acrylic Baffle (Universal/Specialized Version Essential)

5cm (50mm): Suitable for canned beverages, preventing slippage and facilitating easy access.

7cm (70mm): Suitable for small bottles of beverages, ideal for general use.

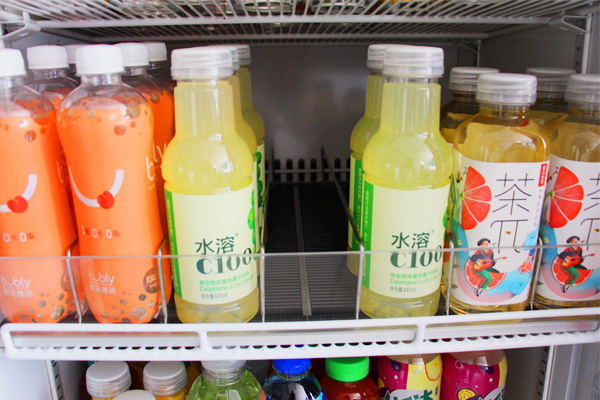

9cm (90mm)/11cm: grocery roller fridge shelf is suitable for medium to tall bottles and 1.5L large bottles of beverages, preventing tipping.

Customization Options: Brands can customize and print their logos to enhance display visibility.

2. Dividing Wires

Material: Stainless steel (rust-proof and deformation-resistant).

Selection Logic: Number of dividing wires = Number of required compartments + 1 (e.g., 8 wires for 7 compartments), used to distinguish different categories or specifications of goods.

Exception: Dedicated racks require additional wires; customized racks come with built-in fixed dividers.

3. Other Optional Accessories

Aluminum Beams: Required for the standard version (front and rear aluminum beams), used to secure the baffle; custom versions do not include aluminum beams.

Color Options: Black (resistant to dust, easy to maintain), Off-white (high-end look, enhances store image).

Avoidance Guide (Troubleshooting Common Selection Mistakes)

Insufficient Support Arm Positions: If the support arm only has one position, it must be replaced with a two-position support arm; otherwise, the tilt angle cannot be adjusted.

Dimensional Measurement Errors: The inner diameter of the auto front shelf beverage glides must be measured, not the outer diameter; otherwise, the slide rail may not be able to be installed or the gap may be too large.

Incorrect Baffle Height: Low baffles are prone to tipping over for tall bottles, while high baffles make it difficult to retrieve short cans. Precise matching according to product height is necessary.

Version Incompatibility: Customized versions are only suitable for refrigerated display cases, not shelves; the universal version has the best adaptability and is the preferred choice for beginners.
